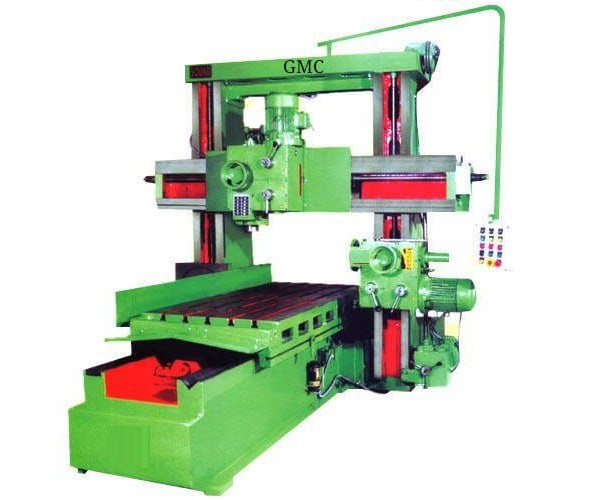

Plano Milling Machine

Gurmeet Machinery Corporation is one of the largest and reputed Plano Miller Machine Manufacturers in India. Our Plano Miller Machines are made of excellent quality of raw material by our experienced professionals ensuring low maintenance and long life. With our immense effort we have become one of the trusted Plano Miller Machine Manufacturers and Plano Miller Machine Exporters in India .

Miller Machine is versatile and designed to be used to machine flat and irregular surfaces. From Drilling, Cut Gearing, Producing Slots to Boring, it has several applications. Gurmeet Machinery Corporation is one of the best Miller Machine Manufacturers in Punjab, India. Our offered machine has been designed keeping its diverse applications in mind and are as per the industry standards that will give users value for their investment.

Merits Of Using Our Miller Machines:

• With this Vertical Miller Machine, the metal can be removed at a faster rate than before because the cutter on it has got multiple cutting edges and rotate at a much higher speed.
• Moving the table of the machinery to an accuracy of some specific unit can be possible (depends on the design).
• Helpful in various applications since various cutters and precise tools can be machined.
• The installation of Miller Machinery will give a boost to your productivity while saving your time and money.

Make A Call!
Counted amidst the trusted Universal Miller Machines Exporters and Suppliers in India, we are available right here to serve our assistance. Dial our number or drop us your specific requirements now.

We are counted among the reputed business entities, engaged in manufacturing and supplying Miller Machine. This machine has spindles and cutters mounted on a horizontal arbor above an X-Y table. Best quality mild steel and cast iron are used to manufacture this machine. Our offered machine allows for the rapid removal of material from the work piece. Universal Miller Machine can smoothly handle single piece jobs easily, hence highly used in large and small machine repair shops, production operations and tool & die shops.

Features:

• Easy installation
• Easy operate
• Duly seasonal alloyed heavy duty casting.
• High quality steel is used in main spindle, shafts & gears.
• Interchangeability of parts ensured through standardization & quality control.
• All sliding screws fitted with Bushes & bearing for smooth running & easy interchangeability.
• Ram, cross slide. main working table all alignments with Taper gib strip.
• The machines table accuracy is within one two microns, plus host of other features like Vibration free precision, honed head hardened & grinded, seasonal cast steel body.
• Longer working life
• lubrication system

Technical Specification:

Model	GMC 0A No.	GMC 1 No.	GMC  1.5 No.	GMC 2 No.	GMC 3 No.
Table
Working Surface Table	825 x 175	1050 x 250	1150 x 275	1300 x 250	1500 x 300
No. of T- Slots	3	3	3	3	3
Size of T- Slots	12	12	12	16	16
Longitudinal Travel (X)	375	500	550	650	700
Cross Travel (Y)	125	175	200	275	325
Vertical Travel (Z)	250	300	400	500	675
Swivel table	45°	45°	45°	45°	45°
Spindle
Spindle Speed	6 No.	6 No.	9 No.	9 No.	9 No.
Range of Speed rpm	45 - 500	45 - 550	40 - 675	40 - 675	40 - 675
Table Rotation Side to Side	45° x 45°	45° x 45°	45° x 45°	45° x 45°	45° x 45°
Arbor Diameter	25	25	25	25	25
Taper in Spindle	MT-2	MT-2	MT-3	MT-4	MT-4
Feed
No. of Feed ( longitudinal )	3	3	3	3	3
Cutting Capacity	8 DP	8 DP	6 DP	6 DP	6 DP
Electrical Motor
Motor Required	1 HP	1 HP	2 HP	3 HP	5 HP
R.P.M	1440	1440	1440	1440	1440
Coolant Pump Motor	0.1 HP	0.1 HP	0.1 HP	0.1 HP	0.1 HP

Gurmeet Machinery Corporation is one of the trustworthy Miller Machine Manufacturers In Punjab who is here to fulfill all your machine tools needs. We have a key objective to be a one-stop shop for all your needs of machines that are used in shaping, cutting, and drilling metals. We believe in building valuable business relationships. We have Shaper Machine, Surface Grinder Machine, Hydraulic Press Machine, Shearing Machine, Miller Machine, and much more for you. Our focus is to be a trusted platform in the domain.

We have an in-house manufacturing unit with new machines, and modern technology is established for designing the unmatched quality Miller Machine in the town. With innovation and better technology, we became a one-point solution for Miller Machine. We have an ISO 9001-2015 Certificate issued by the Dubai Accreditation Centre that speaks for the quality of our products. Our highly trained expert supervises every detail during manufacturing and keeps their figures on the pulse to bring the best quality products for you. Our consistent efforts and excellence enable us to earn credibility in the domain. The hard work and dedication to achieve something in life permit us to attain maximum client satisfaction. We are the ones who strictly follow the industry norms and never compromise with the quality standard.

We work next level hard to attain the name of one of the leading Miller Machine Exporters And Suppliers In India and pay attention to every detail to enhance the performance of our machines. You can place your trust in our Miller Machine and reach us anytime for the same. We offer you the best products at the best possible price so call us without further delay. We are committed to delivering premium products in the minimum time. Our experts are right here to assist you in the best ways. Connect with us over a call or drop an email. We are happy to help you. Ping us now.
